System featuresmonitoringInput power monitoring. Environmental monitoring via optionalremote sensors. Daisy chain ethernet connectivity. Local high visibility display.
Monitoring level 1Phase (a) monitoring (kwh, w, va, pf, v,
A)power switchingAuto switching -
In event of power failuretransfer time<
4-8msout of phase
Transfers yesfront panel hmi led overlay
Yesquantity of inputs
2 (dual input)voltage
100-120vcurrent
15ava per input (load capacity)
1.4kw (120v)frequency50/
60hzover current protection
NoneswitchNolcd touchscreen display /
Auto oriented
Yespower cable wire gauge14/
3power cable length10ft /
3mpower entry location

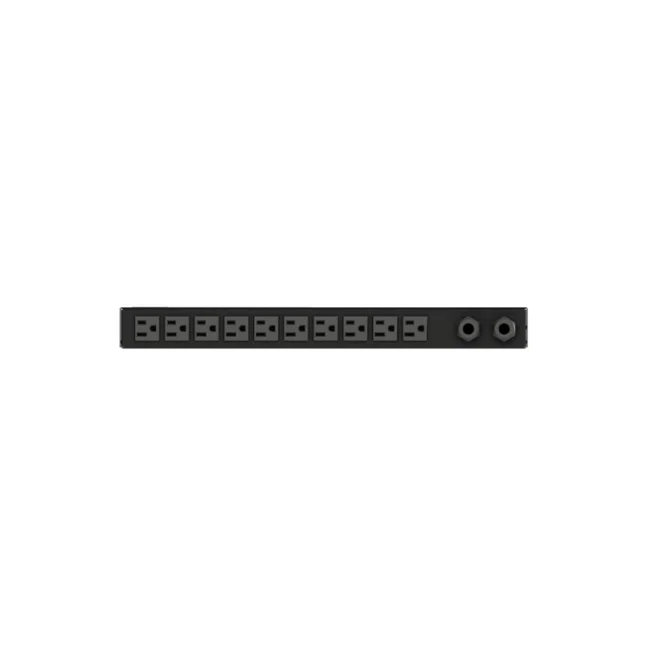

Rearplug type(2) nema 5-15preceptacle/socket type #1:
Nema 5-15r- quantity on rear
10- styleIndividual- voltage per receptacle/
Socket
120vnetwork connectionDual 10/100/
1000mbps ethernetprotocols supportedDhcp, http, https, ipv4, ipv6, ldap, ntp, radius, rstp, ssh, smtp, snmp (v1/v2c/v3), syslog, tacacs+,
Modbus tcpdata access formatsCsv datalog, json api,
Json datalogusb support
Yesip reset button
Yeshard reboot button
Yesserial connectionRs232
Via rj45remote sensor rj connection jacks1 (supports up to
16 sensors)maximum operating temperature60c /
140fheavy steel - powder coat finish
Blackconfiguration19in / 483mm horizontal ra
Ckmountadjustable 4 post mounting (range)
Yes (24 - 37)2 post mounting kit
Yesproduct warranty5-year limited warrantycertification/
AgencyApprovals ul & c-ul listed 62368-1certification/
AgencyApprovals rohs compliantcertification/
AgencyApprovals fcc part 15 clas
S a conformancechassis dimensions (hxwxd)1.72in x 17in x 18in /
44mm x 432mm x 457mmshipped weight17lbs (7.71kg)
