System featuresmonitoringInput power monitoring. Environmental monitoring via optionalremote sensors. Daisy chain ethernet connectivity. Local high visibility display.
Monitoring level 1Phase (a) monitoring (kwh, w, va, pf, v, a)power switching auto switching -
In event of power failuretransfer time<
4-8msout of phase transfers
Yesfront panel hmi led overlay
Yesquantity of inputs
2 (dual input)voltage
100-240vcurrent
10a or 15ava per input (load capacity)1.4kw (120v)
Or 2.4kw (208v) or 2.3kw (230v)frequency50/
60hzover current protection

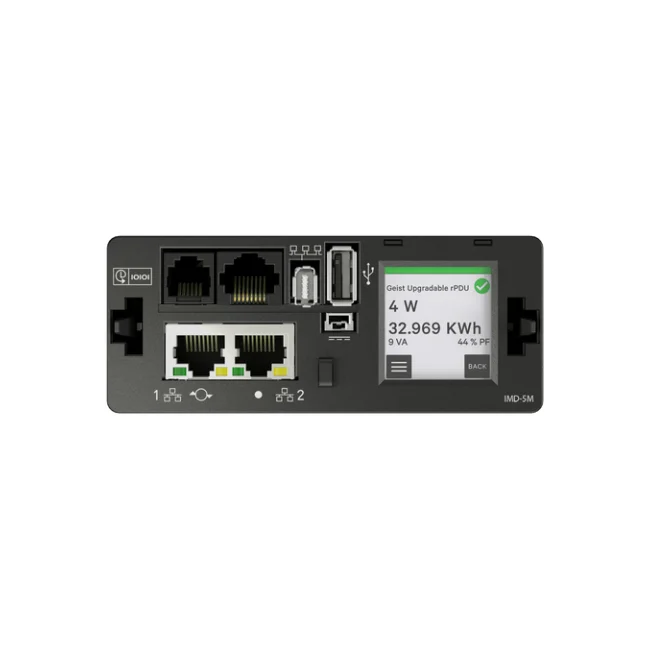

NoneswitchNolcd touchscreen display /
Auto oriented
Yespower entry location

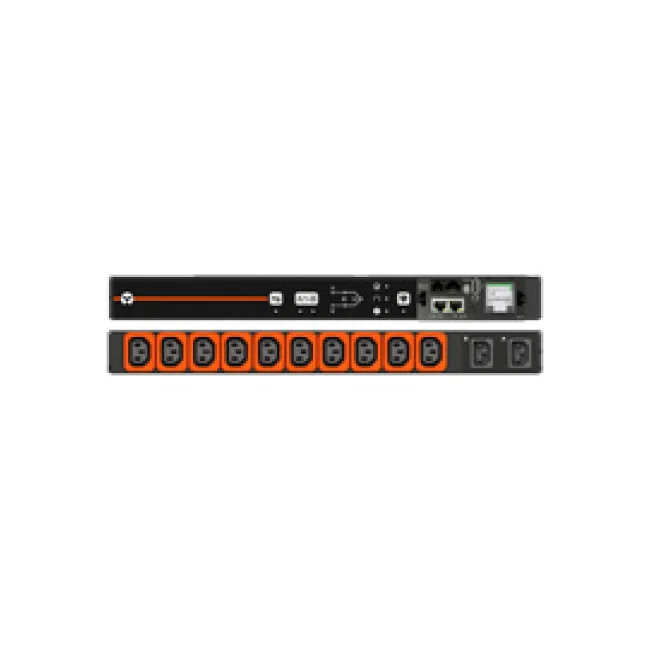

Rearplug type(2) iec60320 c14 power inlet (cords sold separately)receptacle/socket type #1:
Locking iec c13- quantity on rear
10- u-lock color id1 circuit =
Orange- styleIndividual- voltage per receptacle/
Socket
100-240vnetwork connectionDual 10/100/
1000mbps ethernetprotocols supportedDhcp, http, https, ipv4, ipv6, ldap, ntp, radius, rstp,ssh, smtp, snmp (v1/v2c/v3), syslog, tacacs+,
Modbus tcpdata access formatsCsv datalog, json api,
Json datalogusb support
Yesip reset button
Yeshard reboot button
Yesserial connectionRs232
Via rj45remote sensor rj connection jacks1 (supports up to
16 sensors)maximum operating temperature60c /
140fheavy steel - powder coat finish
Blackconfiguration19in / 483mm horizontal ra
Ckmountadjustable 4 post mounting (range)
Yes (24 - 37)2 post mounting kit
Yesproduct warranty5-year limited warrantycertification/
Agency approvalsCe markedcertification/
Agency approvalsUl & c-ul listed 62368-1certification/
Agency approvalsUkca markedcertification/
Agency approvalsComplies with iec 62368-1 (doc available)certification/
Agency approvalsComplies with en 55032 and en 55035certification/
Agency approvalsRohs compliantcertification/
Agency approvalsRcm mark (emc only)certification/
Agency approvalsFcc part 15 class a conformancecertification/
Agency approvals
China rohschassis dimensions (hxwxd)1.72in x 17in x 18in /
44mm x 432mm x 457mmshipped weight15lbs (6.8kg)
